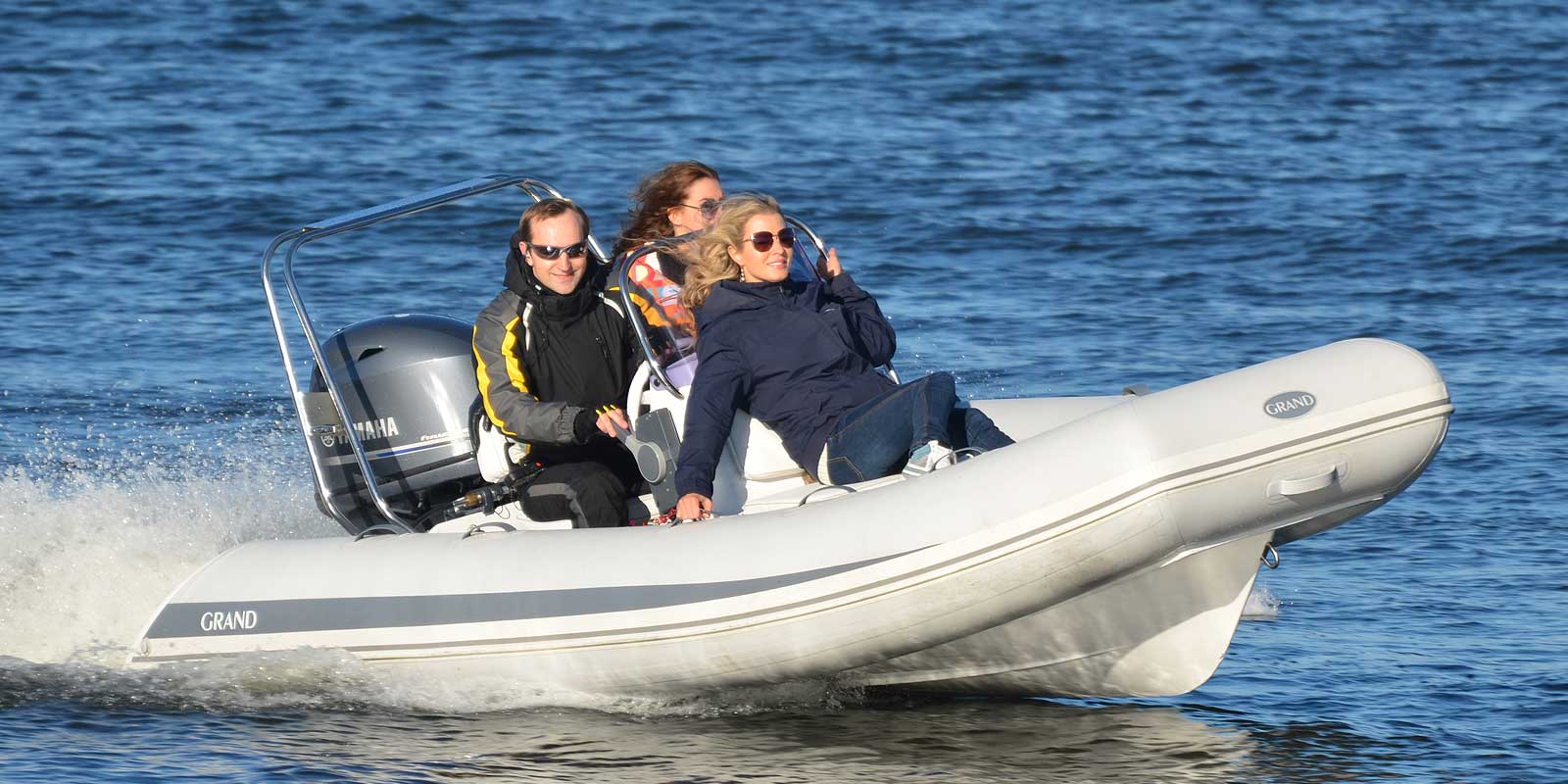

Silver Line S470


15’5″ long, 70HP max

The Silver Line S470N is a new model replacing our previous S470 bestseller. Holding to the original Silver Line philosophy of a practical, spacious, and lightweight boat with an elegant design, it now incorporates the unique GRAND DART hull system with the following key benefits:
• A higher keel line with a deeper “V” for a softer ride;
• Additional space at the forward end of the cockpit;
• Reduced water spray for a drier ride at speed.

There is now a new generation steering console with a double seat available for a more comfortable ride plus additional storage space.

The S470N is available in three versions:
• The BASE version (S470N) — boat with bare cockpit suitable for customization;
• The SPORT version (S470NS) — boat with (CS-03) SPORT console, double jockey seat, and steering system;

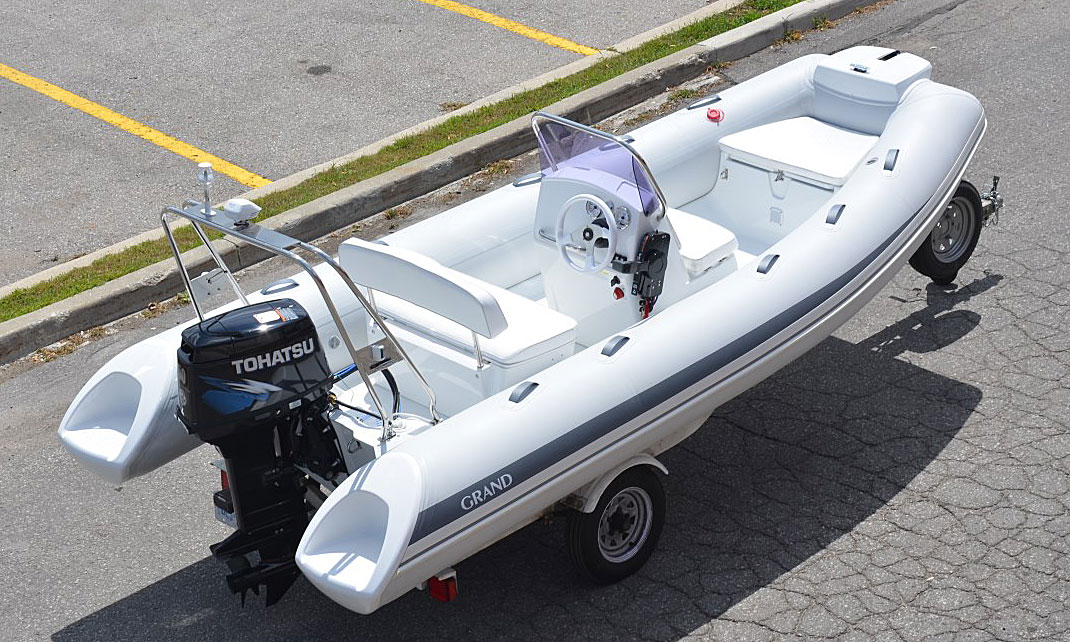

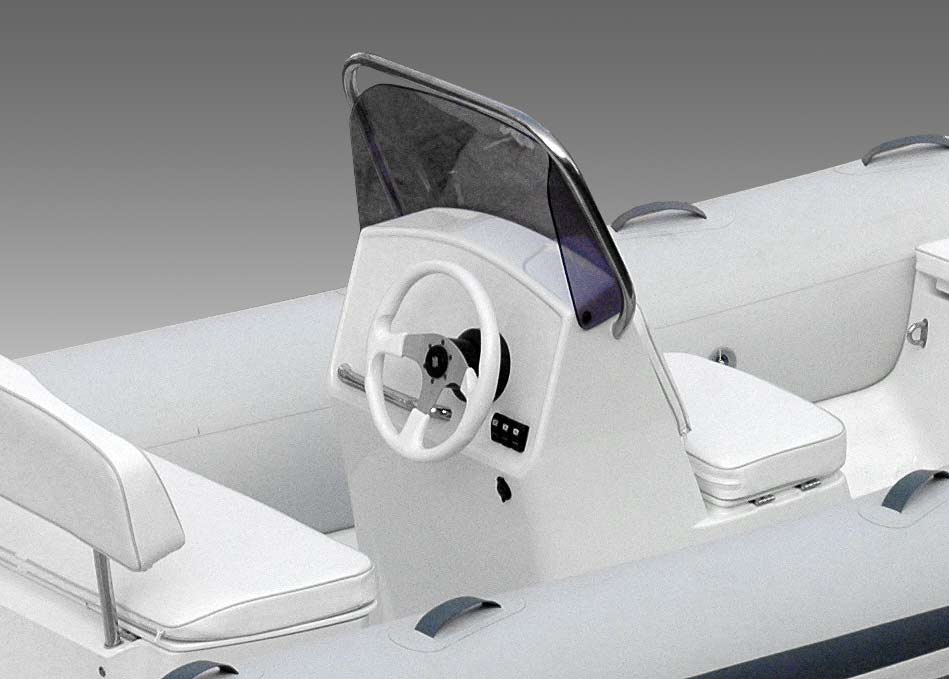

• The DELUXE version (S470NL) — boat with new (CL-14) steering console; windshield, handrail and front seat, plus a new stylish (SD-10) double seat.

Each model is available with either PVC or HYPALON buoyancy tubes.


Use the unique online GRAND boat Configurator here! You can visualize your boat, change the colors of the tube, hull and upholstery, add the optional equipment and submit the final boat specification with all the options you like for quotation!





  • Deep “V” molded fiberglass hull with original “DART-hull” system, self-bailing cockpit, fuel tank compartment and access cover
  • Soft curved multi-chamber inflatable tube

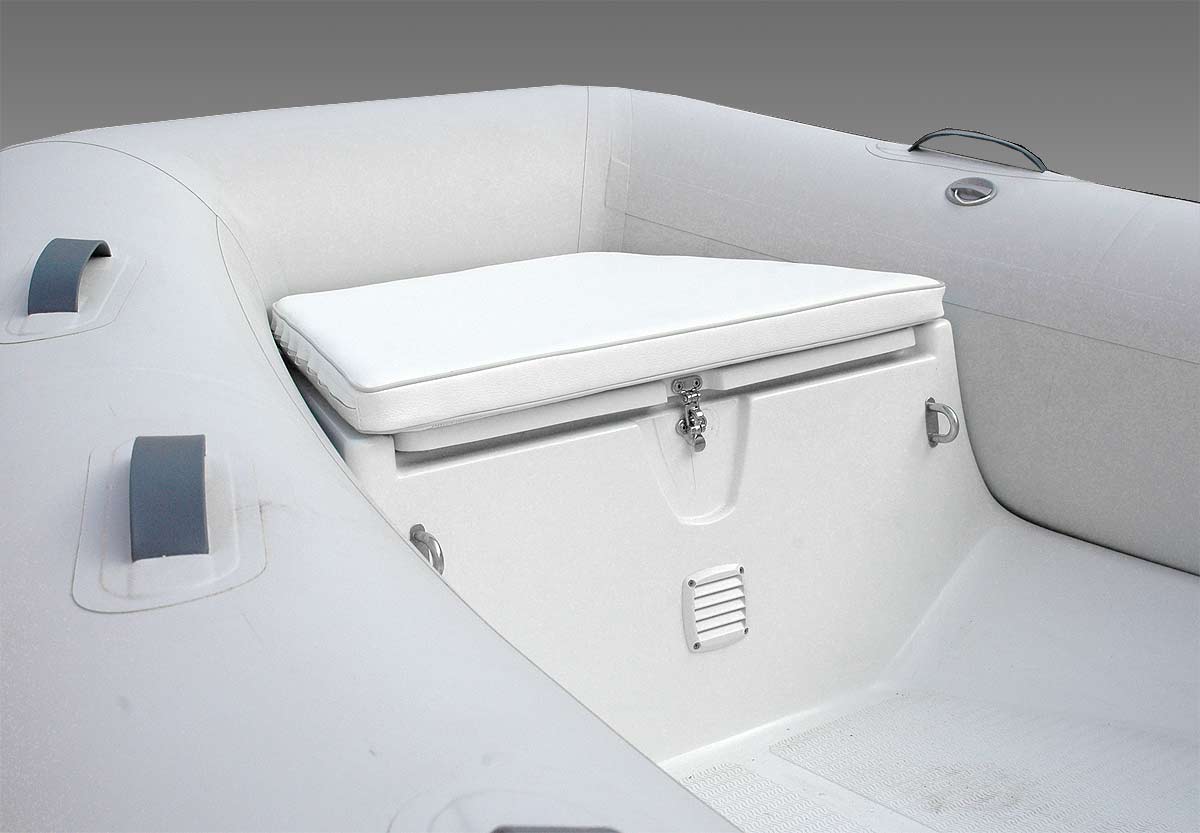

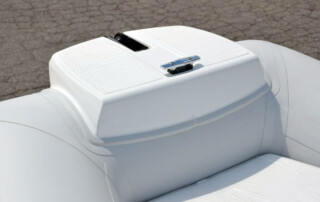

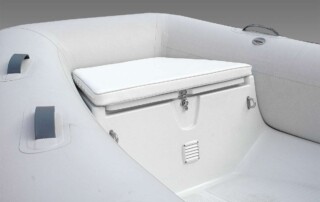

  • Molded in spacious bow locker with access cover
  • Bow locker removable cushion
  • Towing bow eye, two front and two rear lifting eyes
  • Bow grab handle, safety grab handles
  • Tough raised rubbing strake with splashguard
  • Two paddles and high-efficiency foot pump
  • Two cockpit bailers and hull drain plug
  • Maintenance kit & User’s manual

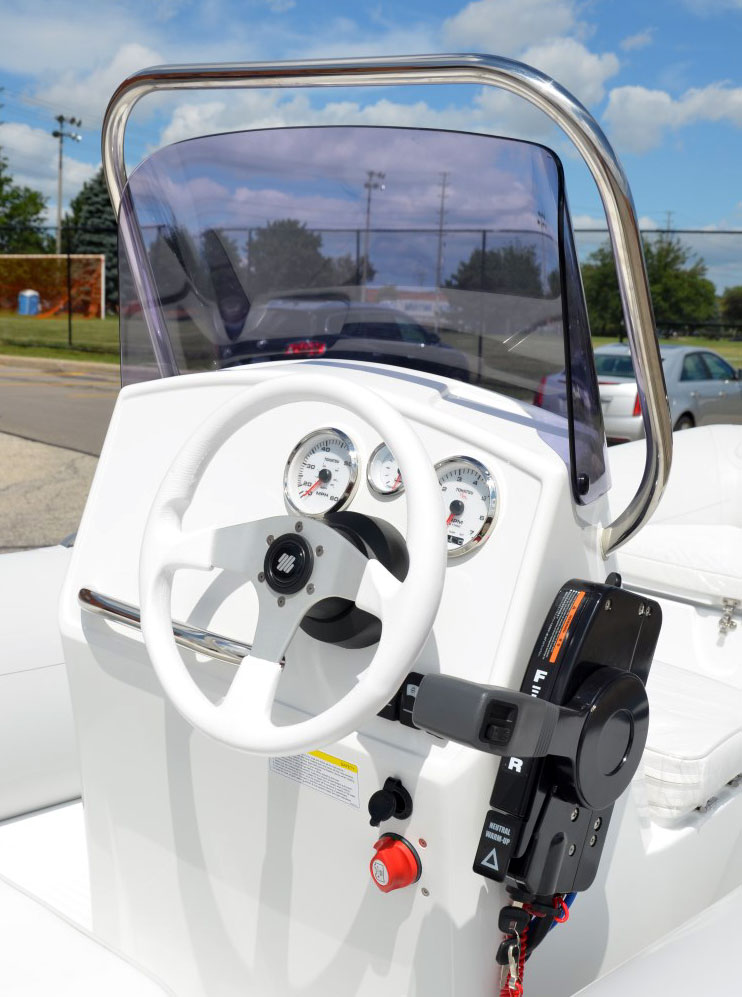

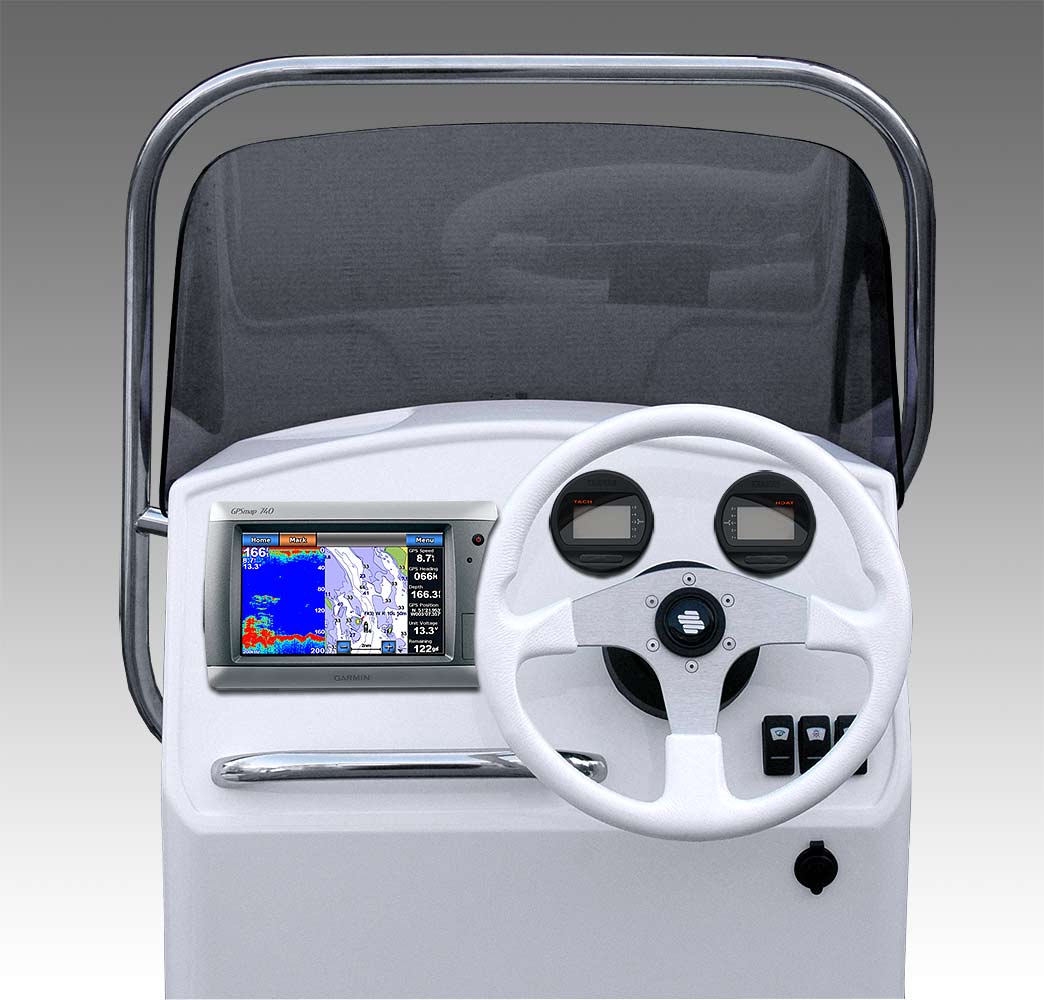

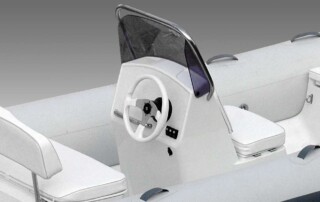

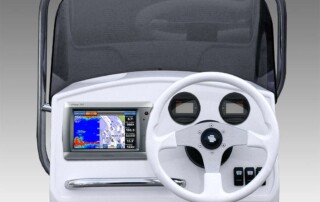

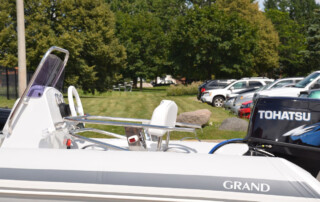

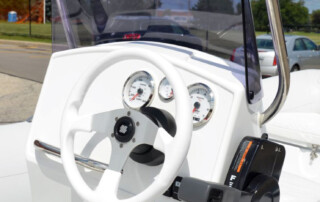

  • Steering console CL-14 with windshield, handrail
  • Mechanical steering system with steering wheel

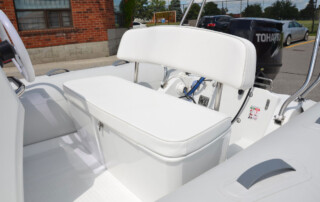

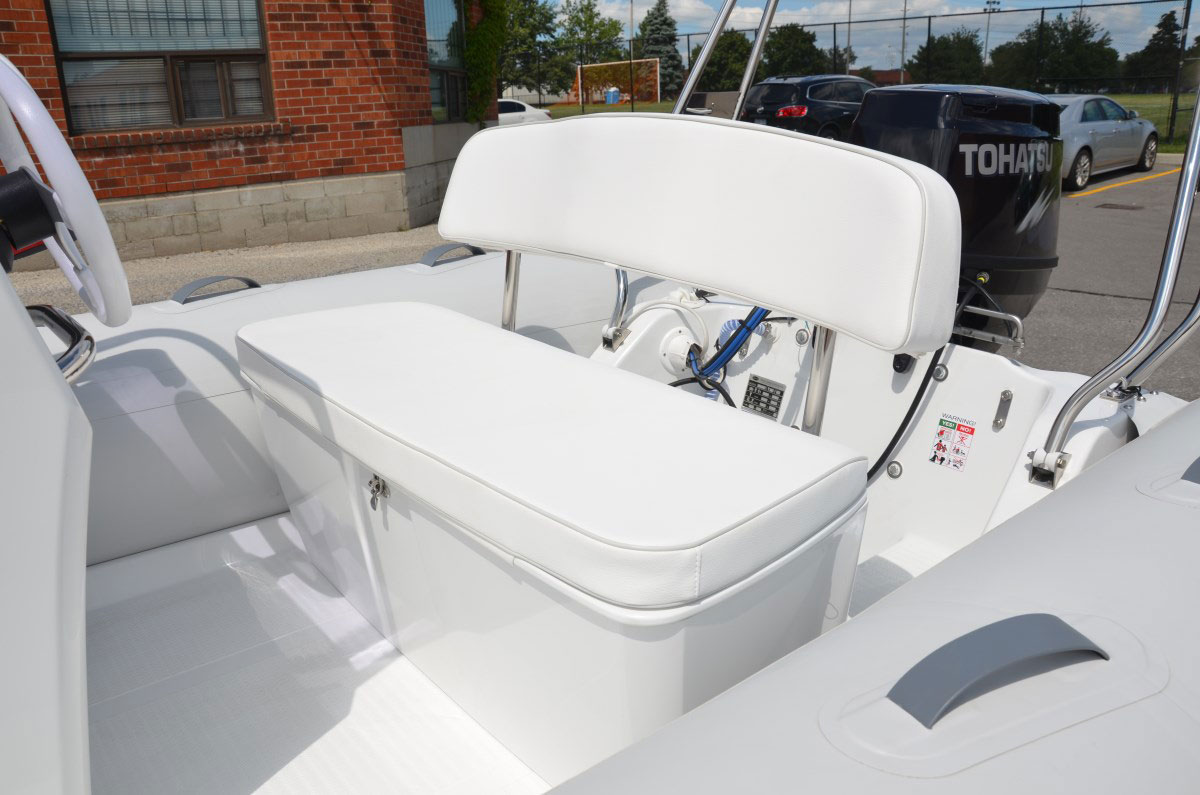

  • Rear double seat SD-10 with seat back and stowage
  • Steering console CS-03 with windshield and handrail
  • Mechanical steering system with steering wheel


  • Removable sundeck
  • Complete electric package

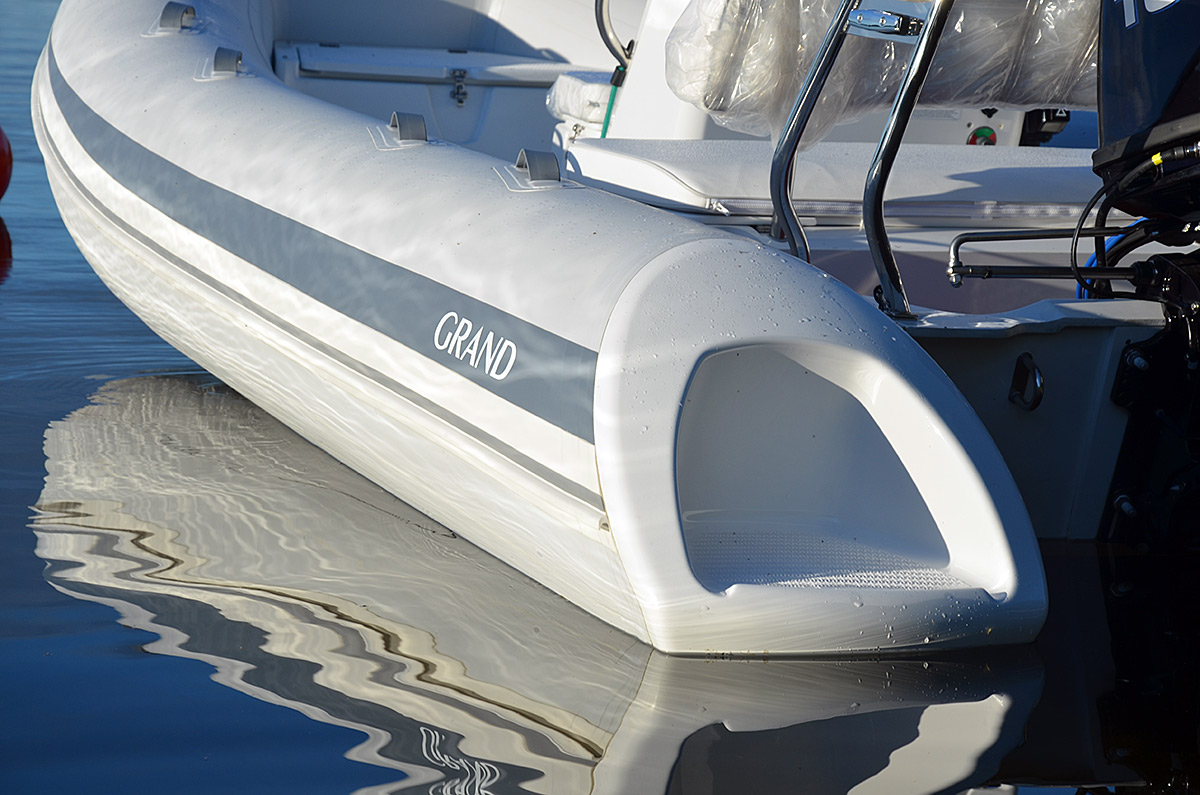

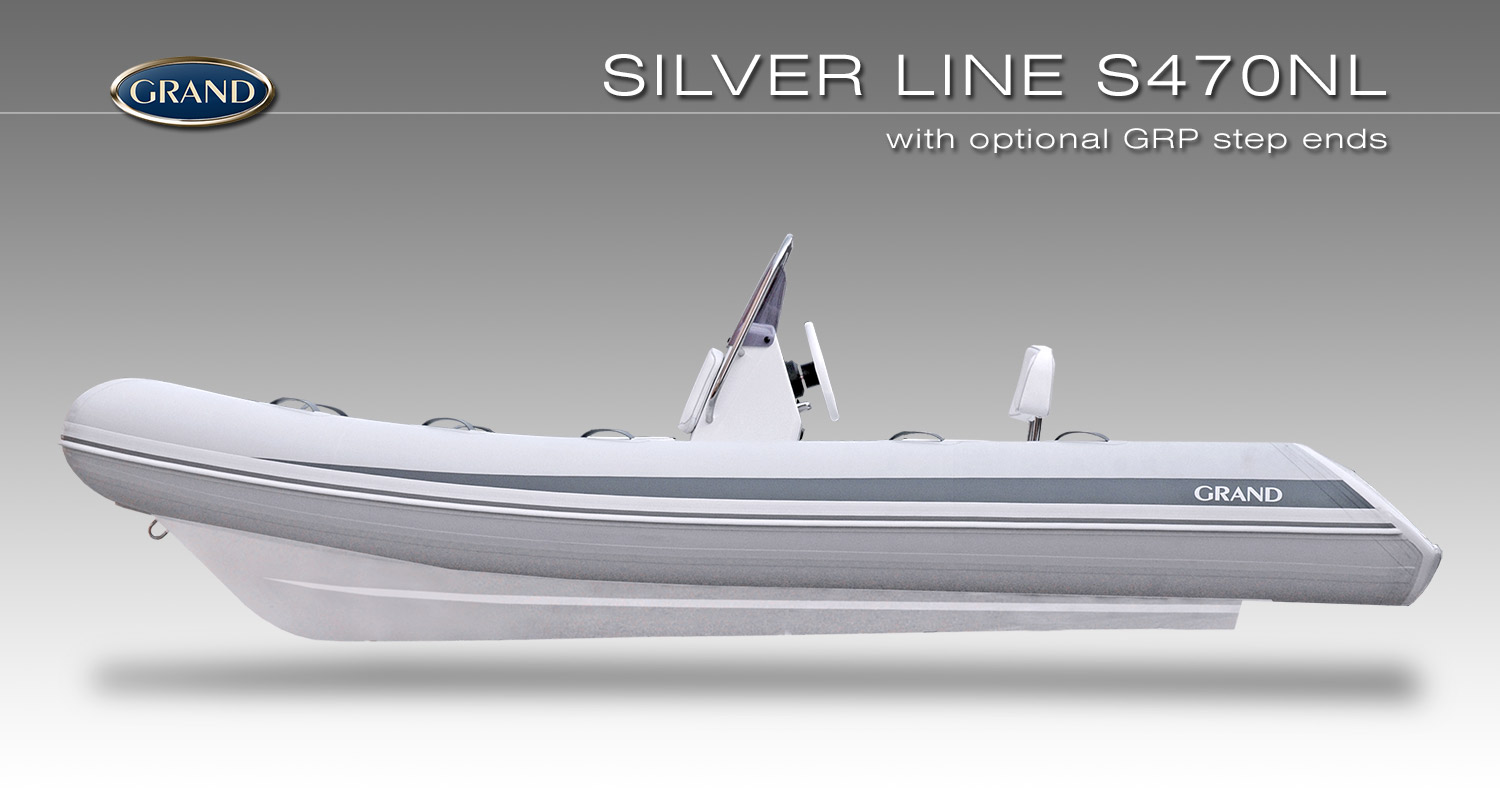

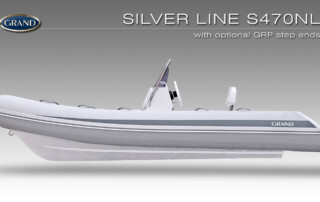

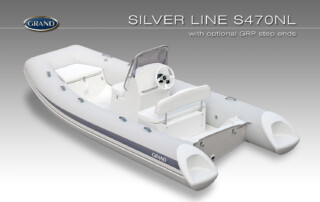

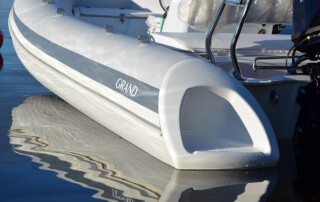

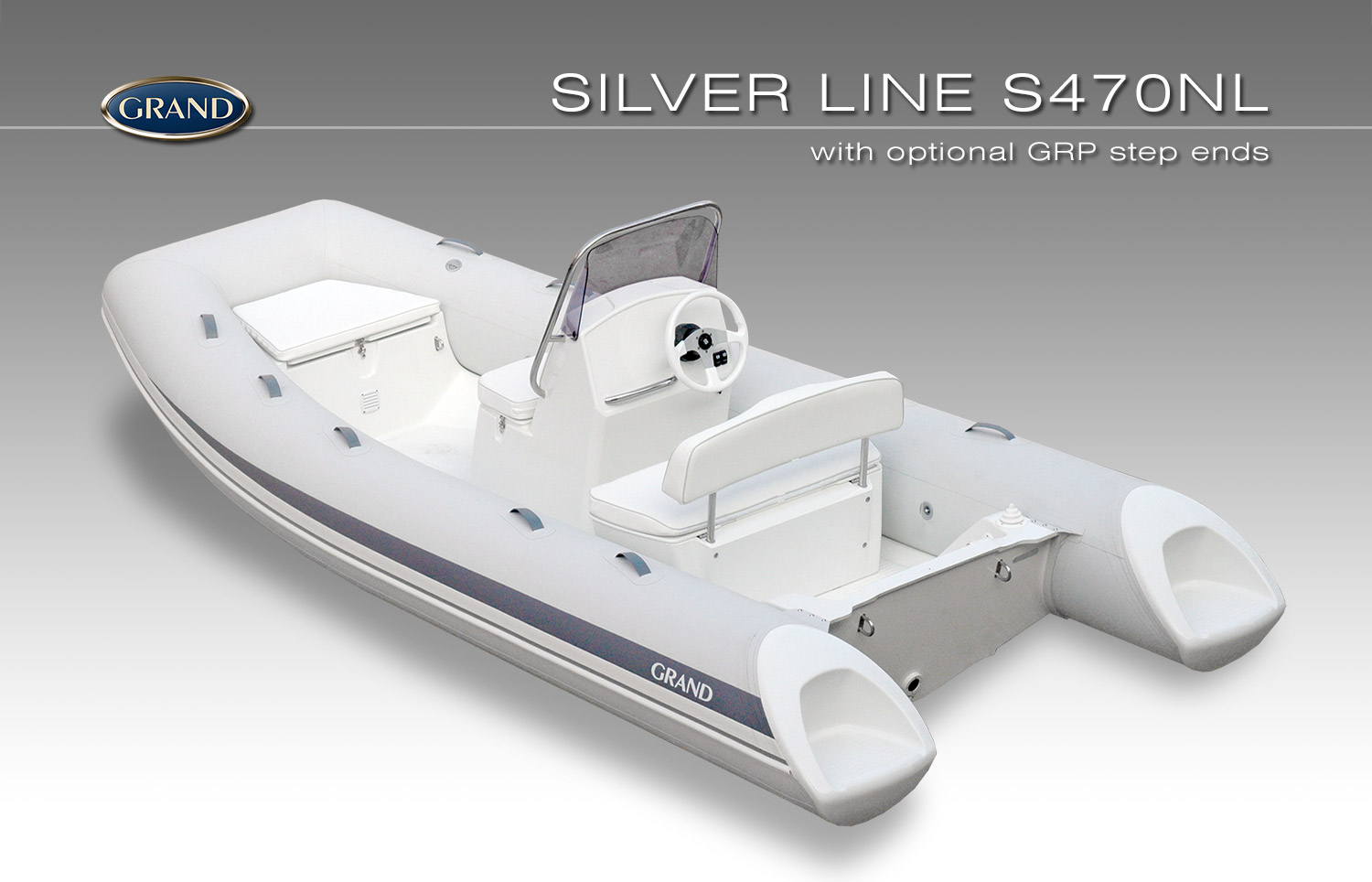

  • Fiberglass step ends of the inflatable tube

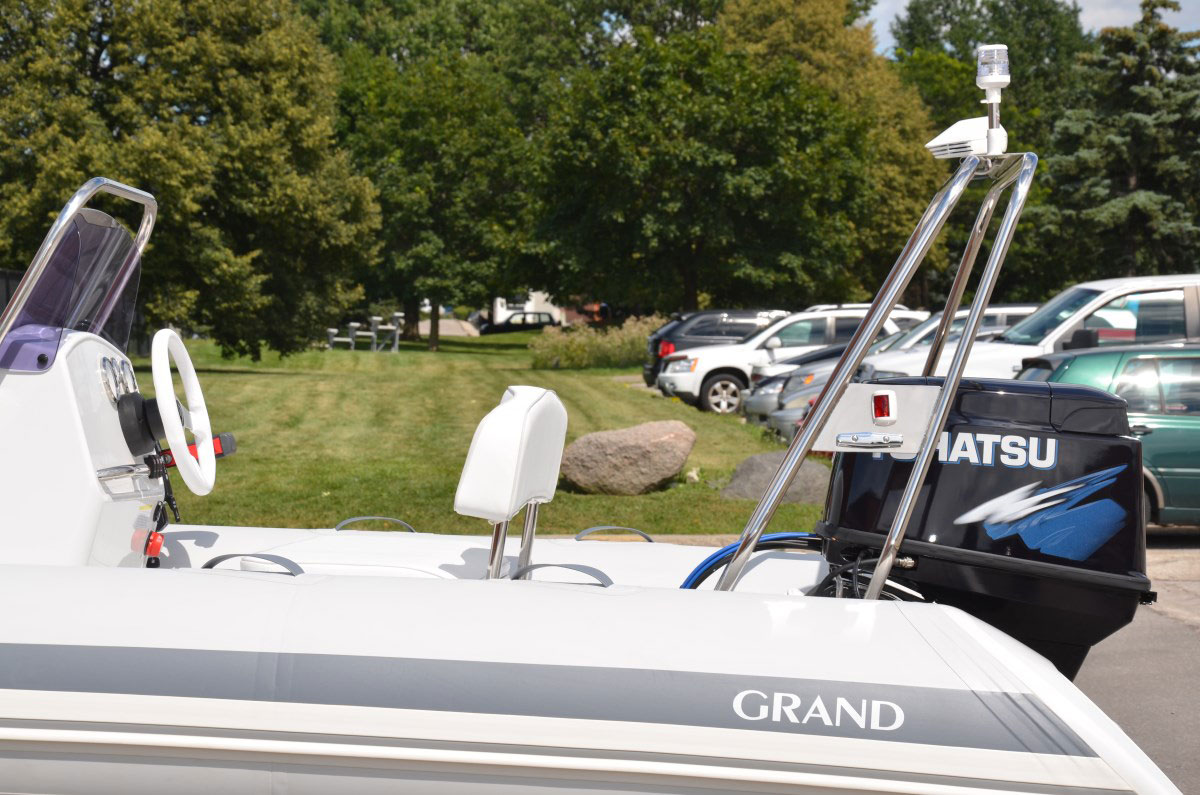

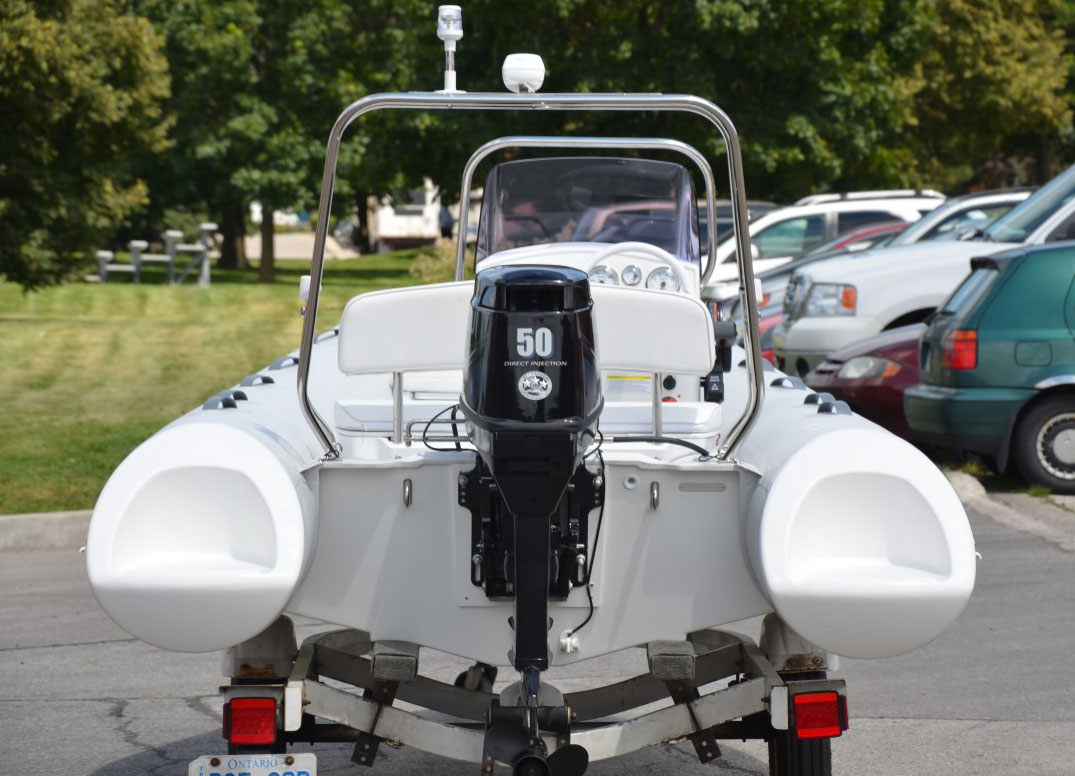

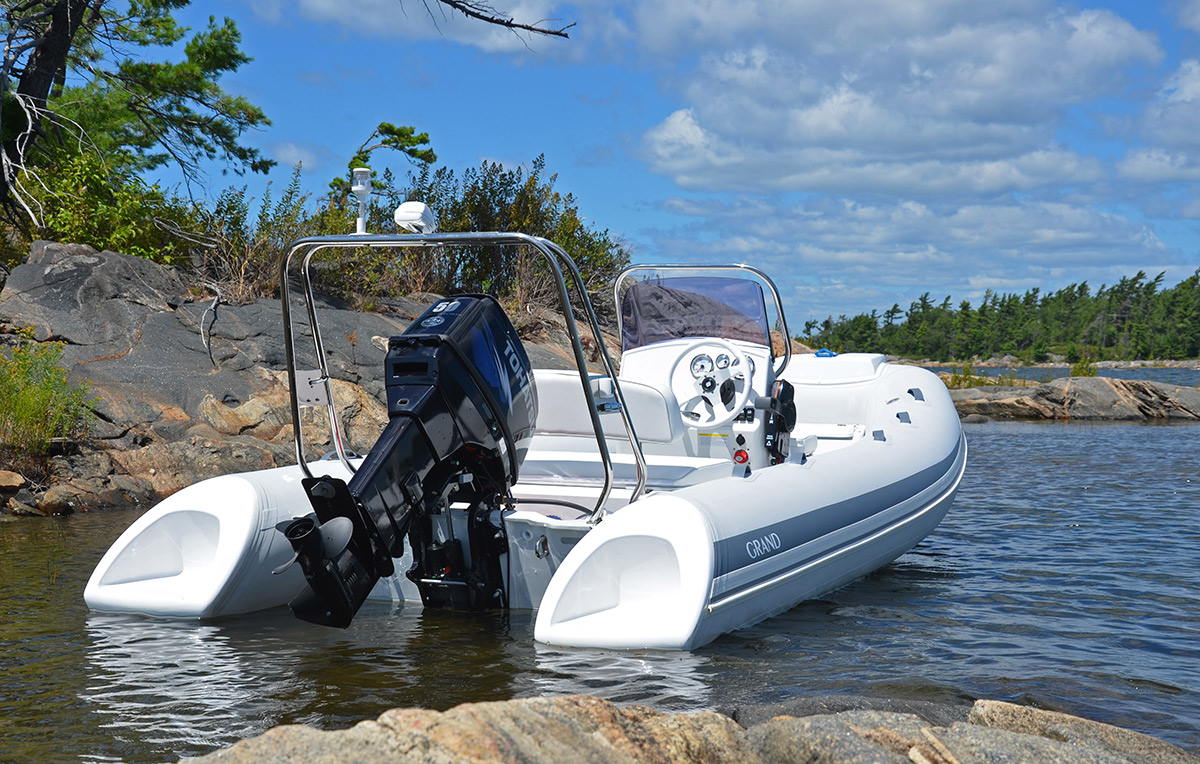

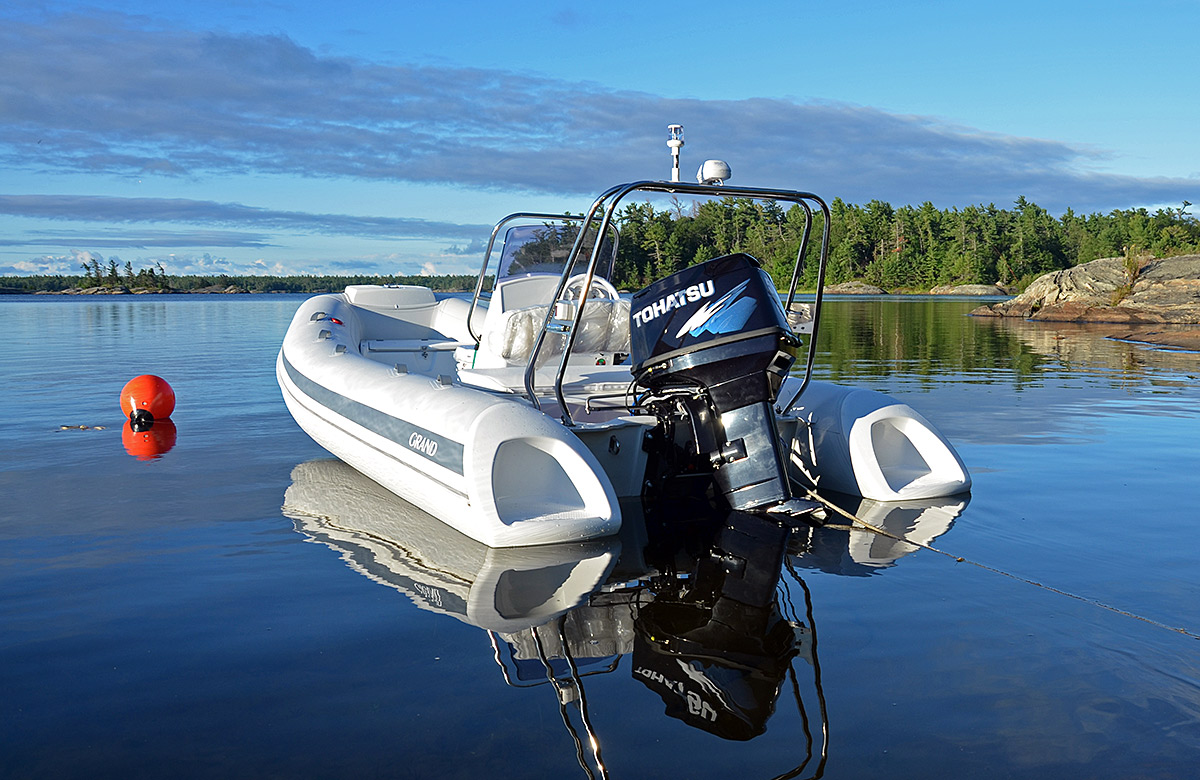

  • Stainless steel folding navigation arch

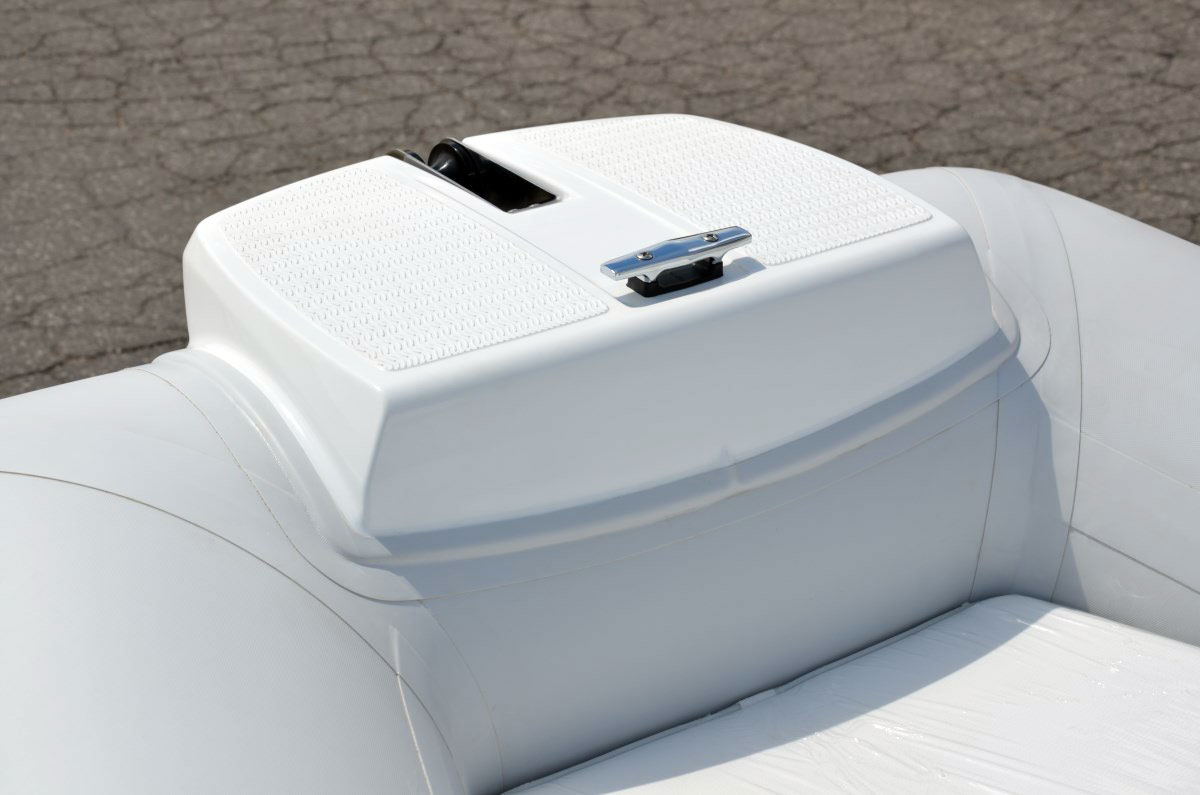

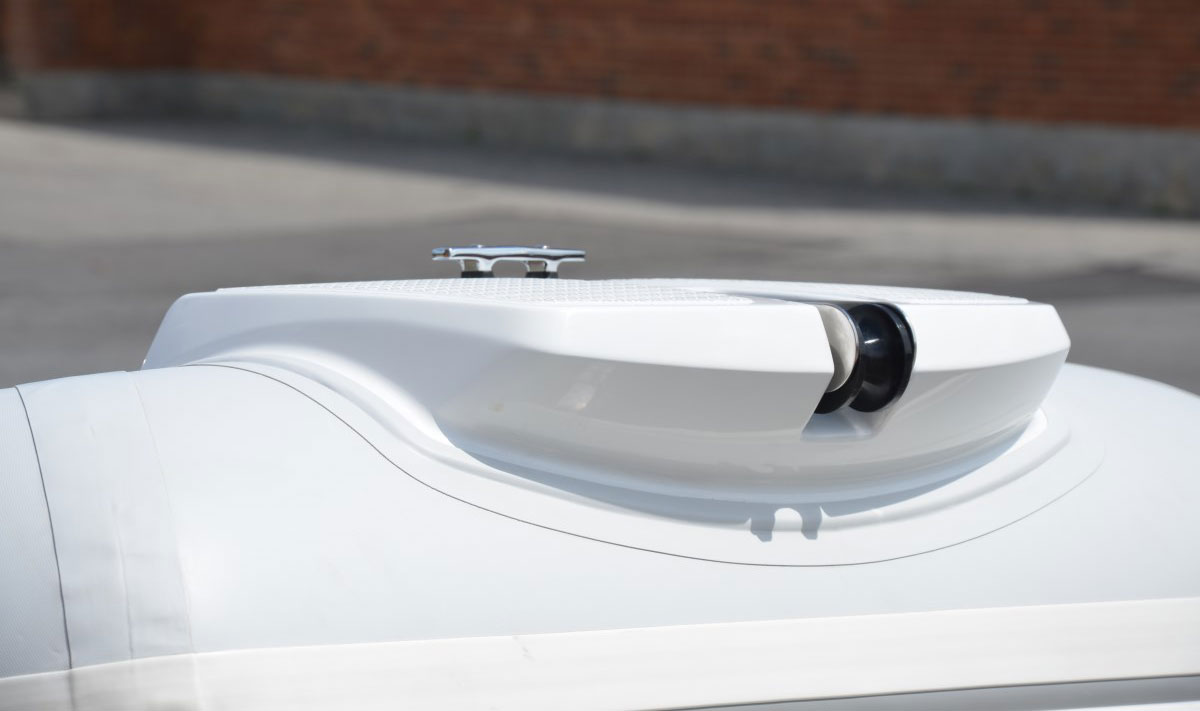

  • Bow step plate with anchor roller and cleat
  • Bow locker removable cushion
  • Collapsible Bimini top
  • Overall cover, console cover
  • Overpressure valve
  • Keel and tube protector packages
  • SILVERTEX upholstery upgrade
  • SeaDek antiskid set






Length overall 15’5″ 15’5″ 15’5″
Length inside 11’2″ 11’2″ 11’2″
Width overall 6’9″ 6’9″ 6’9″
Width inside 3’4″ 3’4″ 3’4″
Tube Diameter 50 cm / 20″ 50 cm / 20 50 cm / 20
Bare boat weight 170 kg / 274 lbs 200 kg / 440 lbs 208 kg / 458 lbs
Loading capacity 900 kg / 1980 lbs 900 kg / 1980 lbs 900 kg / 1980 lbs
Passenger capacity 8 8 8
Number of chambers 5 5 5
Engine recommended 50 HP 50 HP 50 HP
Engine MAX 70 HP 70 HP 70 HP
Engine weight MAX 150 kg / 330 lbs 150 kg / 330 lbs 150 kg / 330 lbs
Engine shaft length 20″ (long) 20″ (long) 20″ (long)
Boat design category D,C D,C D,C

All technical data are subject to change without notice. The products details and specifications may be changed from specified herein. All the dimensions are + or – 3%. All the weights are + or – 10%

Tube and decor colors


Default light gray and gray color option for tubing & ornamentation.

Light gray tube
with  gray decor.
White hull.

(Default color)


Default white and grey color option for tubing & ornamentation.

White tube
with  gray decor.
White hull.


Default black and gray color option for tubing & ornamentation.

Black tube
with  gray decor.
Dark gray  hull.


Custom colors available upon request.

Some other colors for tube, tube decor and hull can be available on request. Check out availability with your Dealer.
